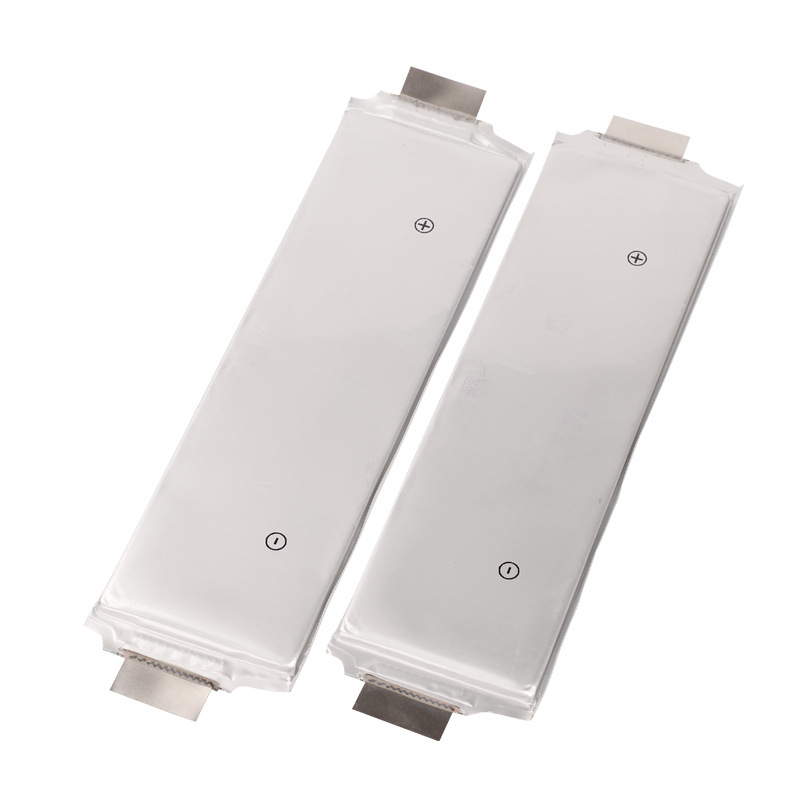

3.7V NCM 50Ah Semi Solid State Pouch Battery

Product description

Specification

🔋 3.7V NCM 50Ah Semi Solid State Pouch Battery: High-Energy, High-Safety Power Solution


In the evolving world of advanced battery technology, semi solid state batteries are redefining energy storage performance. Hysincere 3.7V NCM 50Ah Semi Solid State Pouch Battery delivers exceptional energy density of 235 Wh/kg, remarkable cycle life, and superior safety compared to traditional liquid electrolyte lithium-ion cells.


Ultra-High Energy Density – 235 Wh/kg


This battery model achieves an outstanding energy density of 235 Wh/kg, enabling lighter, more compact designs without sacrificing performance. It is better for those where space and weight is crucial—such as electric vehicle, UAV drone, aerospace etc


🔁 Long Cycle Life – Over 2000 Cycles


Designed for longevity, the 3.7V NCM 50Ah Semi Solid State Pouch Battery retains excellent capacity retention even after 2000+ charge/discharge cycles, ensuring a lower total cost of ownership and reduced environmental impact.



❄️🔥 Superior Low & High Temperature Performance


With its semi solid electrolyte design, this battery significantly outperforms traditional liquid lithium-ion batteries in low-temperature and high-temperature discharge performance. It maintains stable output in sub-zero environments and resists performance drop at elevated operating temperatures.



🛡 Enhanced Safety & Stability


Safety is paramount in modern battery systems. Semi solid state technology minimizes the risk of thermal runaway, greatly reducing fire hazards compared to conventional liquid electrolyte designs. This makes it an excellent choice for demanding applications where safety cannot be compromised.



🛠 Customizable for Diverse Applications


We offer full customization options, including different voltages, capacities, dimensions, BMS protection boards, and special functional requirements. Whether you need a specific form factor for an industrial project or a high-voltage configuration for EV packs, we can tailor the solution to your needs.



📊 Comparison: Semi Solid State vs. Liquid Lithium-Ion (Both NCM Chemistry)


FeatureSemi Solid State (NCM)Liquid Lithium-Ion (NCM)
Electrolyte TypeSemi-solid gel/solid compositeLiquid electrolyte
Energy DensityUp to 235 Wh/kgTypically 180–220 Wh/kg
Cycle Life2000+ cycles1000–1500 cycles
Low-Temperature PerformanceExcellent (better capacity retention)Moderate (capacity drops quickly)
High-Temperature StabilityHigh stability, less capacity fadeLower stability, higher capacity loss
Thermal Runaway RiskVery lowHigher risk
Safety LevelSuperiorStandard
Customizable DesignYesYes, but with limitations



FAQ – Frequently Asked Questions


Q1: Why semi solid state battery is safer?


✅ Semi solid state designs replace most of the flammable liquid electrolyte with a more stable gel or solid material, reducing leakage and the risk of thermal runaway.



Q2: Can this 3.7V 50Ah model be used for EV battery packs?


✅ Definitely. this cell can be configured in series and parallel to reach demanded voltage & capacity for EV.



Q3: How does it perform in cold climates?


❄️ It maintains excellent discharge performance even at low temperatures, with less capacity loss compared to liquid lithium-ion cells.



Q4: Can I request custom dimensions and capacity?


🛠 Absolutely. We can customize voltage, capacity, dimensions, protective circuits, and even integrate smart monitoring functions to meet specific project requirements.



Q5: What is the expected lifespan?


🔁 With proper usage, you can expect over 2000 cycles, which is significantly higher than many standard lithium-ion pouch cells.


Contact us for more information




Model:

12100319

Nominal Voltage:

3.65V

Nominal Capacity:

50Ah

Rated Energy:

182.5Wh

Maximum Charge Voltage:

4.2V

Maximum Charge Current:

50A

Maximum Continuous Discharge Current:

50A

Maximum Peak Discharge Current:

100A

Discharge Cut-off Voltage:

2.75V

Charge Temperature:

0~+50℃

Discharge Temperature:

-20~+60℃

Cycle Life (25℃, 1C, 100% DOD):

>2000

       Dimension:                                                     12*100*319mm

Weight:

810g
