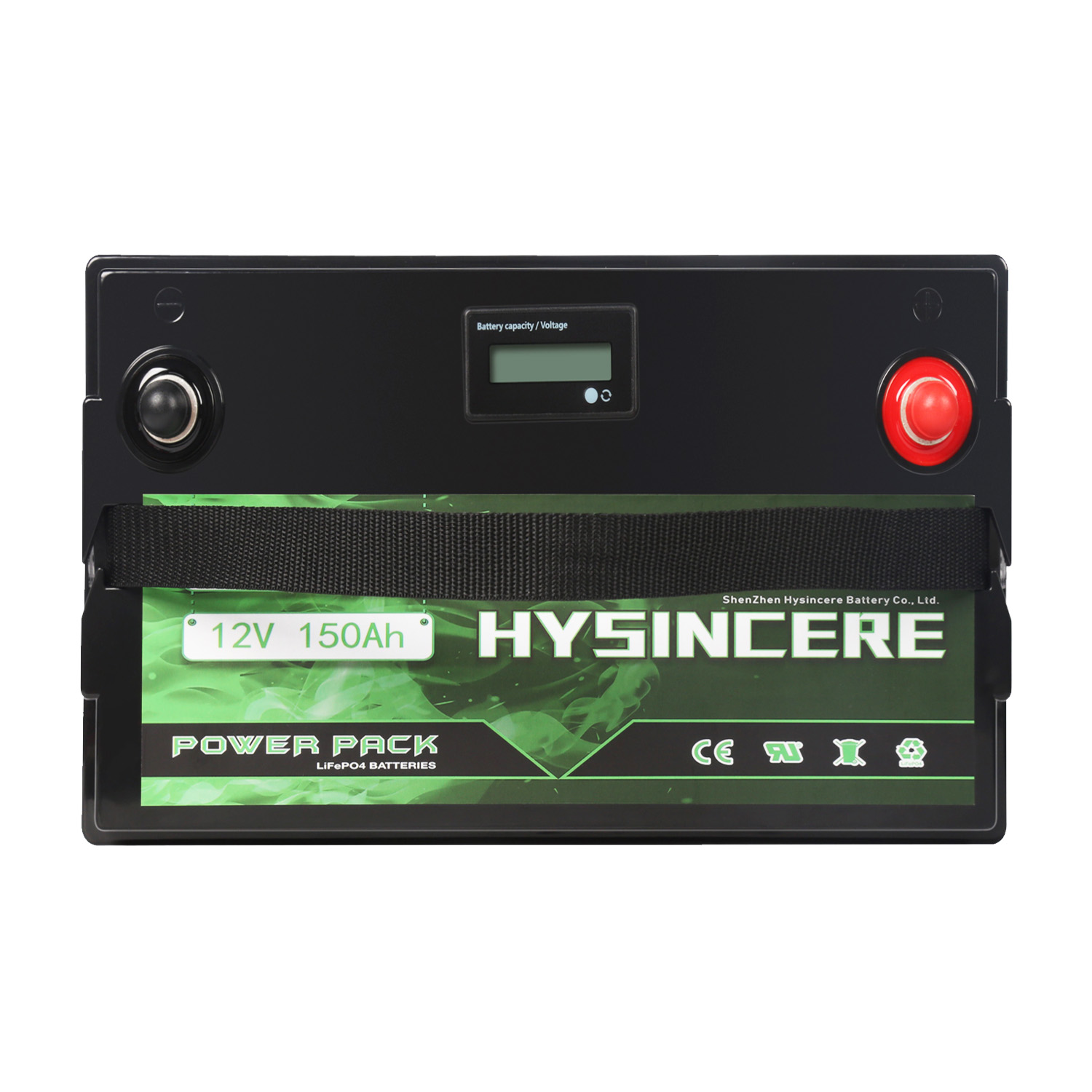

Forklift Battery 12V 150Ah

Vehicle-grade craft, multiple isolation and fixing inside the battery pack, conducive to heat dissipation

Variety of protections, overcharge protection, overdischarge protection, overcurrent protection, temperature protection

The shell is anti-aging, anti-corrosion, fireproof and waterproof

It replaces lead-acid batteries, which is 50% lighter

Wide temperature operation

Safe and reliable, no explosion

Easy operation, plug and play

More than 3000 cycle life


画板 1.png


Product description

Specification


Model:

HX12150S

Nominal Voltage:

12.8V

Nominal Capacity:

150Ah

Rated Energy:

1920Wh

Maximum Charge Voltage:

14.6V

Maximum Charge Current:

100A

Maximum Continuous Discharge Current:

100A

Maximum Peak Discharge Current (10 seconds):

200A

Maximum Load Power:

1000W

Discharge Cut-off Voltage:

10.8V

Charge Temperature:

0~+50℃

Discharge Temperature:

-20~+60℃

Operating Humidity:

<95%R.H (Non-condensing)

Cycle Life (25℃, 0.5C, 100% DOD):

>200

Cells:

23140160-4S3P

Terminals:

F12(M8)

Protection Level:

 IP6

Dimensions:

328*172*215mm

Weight:

             16.5kg
